Tipper Body Floor (Steel Liners)

LOCATION:
ON-HIGHWAY
ACTIVITY:
TRANSPORT & LOGISTICS / DELIVERY
SUB ACTIVITY:
TIPPER
ALERT STATUS:
Normal
DATE ISSUED:
24/06/2015 11:22:58
INCIDENT No:
01416

TITLE
Tipper Body Floor (Steel Liners)
COUNTRY OF ORIGIN

WHAT HAPPENED

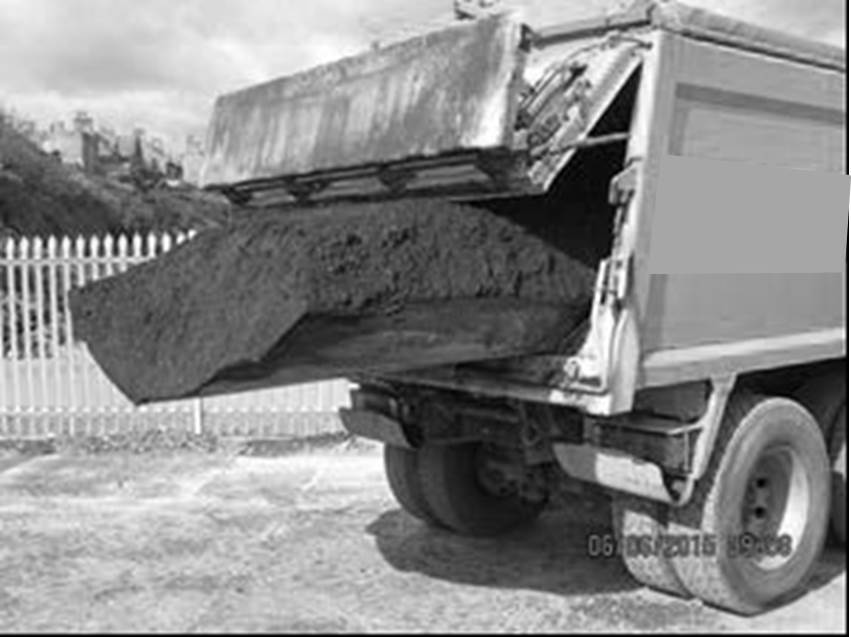

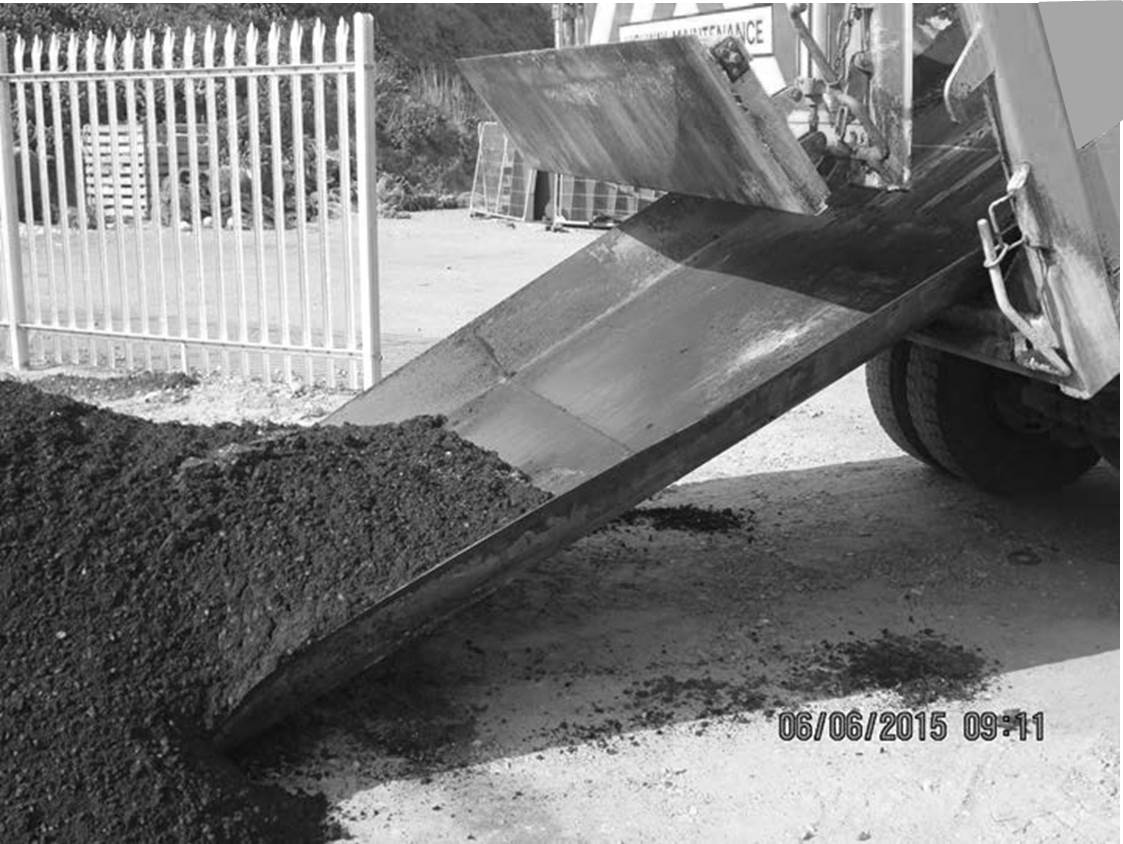

Recently on a contract surfacing site; a tipper truck was delivering asphalt to a machine lay operation. During the discharge of the load, the tipper body floor as a whole moved, as illustrated in the photographs.

After investigation it appears that the cause of the failure was that the fixings used to secure the liner to the body had corroded and failed as a result of galvanic corrosion, which is an electrochemical process. There has been a reaction between the alloy body and steel liner, which has caused the fixings to corrode and fail.
ACCIDENT / INCIDENT IMAGES
Click image to enlarge

Click image to enlarge

LEARNING POINTS / ACTIONS TAKEN

Since this incident, all the steel inserts have been thoroughly inspected and a replacement programme to fit an aluminium welded floor is underway. These trucks have been taken off asphalt deliveries until these steel inserts have been removed.

Company managers/ supervisors issued the safety alert to all contracting & transport personnel, and it was displayed on all health & safety notice boards and at weighbridge offices.

Truck drivers were instructed to inspect the tipper body floor as part of the daily checks for wear etc. and to report any defects immediately.
LEARNING POINTS / ACTIONS IMAGES


LOCATION:
ON-HIGHWAY
ACTIVITY:
TRANSPORT & LOGISTICS / DELIVERY
SUB ACTIVITY:
TIPPER
ALERT STATUS:
Normal
DATE ISSUED:
24/06/2015 11:22:58
INCIDENT No:
01416
